Impulse Sealer, Plastic Bag Sealer
Stock # MACH300

Click to enlarge

$85.00Quantity: 1/cs

Specs
Description

Stock#	Hgt	Wd	Lgt
MACH300	178 mm	375 mm	83 mm

Features:

Seal Length: 305 mm (12")
Seal Thickness: 6 mm (.236")
Seal Width: 2 mm (.079")
Power Consumption: 380 watts
Voltage: AC 120V, 60 Hz
Weight: 11 lbs
Plugs into standard 110 volt socket (USA) - no special wiring needed
Manufacturer tested and comes with warranty
Energy-efficient -- only uses power when sealing
Heating element only hot when sealing
Makes airtight/watertight seal on virtually any heatsealable material in seconds
Works on most plastics up to 6 mm thick
Comes fully assembled
8 timer settings allow adjustments based on thickness of material
UL and CE approved

Instructions for Use:

Plug cord (14) into AC outlet. Machine will operate only when arm (2) is depressed. Regulate the timer (17) according to thickness of material to be sealed. Use a higher number for thicker material (settings 1- 8). Pull handle (1) down. Sealing takes place when light is on. Leave down for an additional second after light goes off for a better seal
Set timer (17) to a lower number if seal burns through
Raise timer to a higher number if material isn't fully sealed
If bag sticks to silicon rubber (5), give more cooling time
Once you set the timer (17), machine will remain constant
Machine will not operate unit until handle (1) is lowered
Close supervision is required when the product is used near children

Notes:

Always keep sealing platform clean. Leaving residue will reduce life of element, Teflon (11, 12) and silicon rubber (5).
Never use moisture to clean sealing surface
Replace torn Teflon (11, 12) at once. A torn cloth will damage the element. Every time you replace the element, replace the lower (11) and upper (12) Teflon cloth
For best operation, use only genuine replacement parts
Change the silicon (5) when worn or burned
Unplug wire (14) when servicing the machine
To protect against risk of electric shock, connect to properly grounded outlet only

Compatible Plastic Types:

Polyethylene (PE)
Polyurethane (PU)
Polypropylene (PP)
Pliofilm
Kel-F
Polyflex
Mylar
PVA
Tivac
Saran
Nylon
Other heatsealable materials

Heating Adjustment List:

Timer Setting	Polyethylene (PE)	Polypropylene (PP) or High-Heat Film
1	UNDER .06 mm	-
2	UNDER .1 mm	-
3	UNDER .14 mm	-
4	UNDER .2 mm	UNDER .03 mm
5	-	UNDER .044 mm
6	-	UNDER .06 mm
7	-	UNDER .08 mm

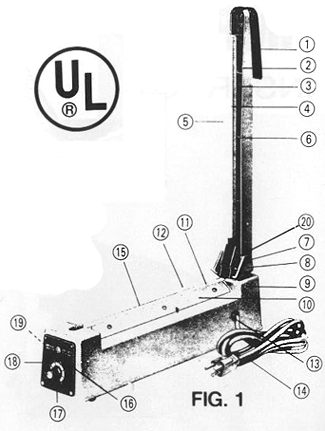

Description of Parts:

1. Handle Knob
2. Platen Arm
3. Platen Spring
4. Platen
5. Silicon Rubber
6. Swivel
7. Hinge
8. Hinge Bracket
9. Enclosure
10. Metal Plate

11. Lower Element Teflon
12. Upper Teflon Cloth
13. Strain Relief Brushing
14. Power Supply Cord
15. Heating Element
16. Pilot Lamp
17. Timer Knob
18. Control Panel
19. Variable Resistor
20. Switch Level

21. Wire Connector
22. Internal Wiring
23. Heater Transformer
24. Connectors
25. Microswitch
26. Switch Bracket
27. Switch Insulation
28. Switch Lever Spring

29. Switch Lever (Bottom View)
30. Heater Terminal Assembly
31. Grounding Wire
32. Cover Plate
33. Printed Wiring Board
34. Relay
35. Rubber Foot & Screw

Connection Diagram:

Impulse sealers can be used in the laboratory for securely sealing specimen bags and to insure a water and airtight seal for autoclaving and sterilization procedures. These heatsealers provide an exceptional 2 mm wide air and watertight seal on most plastic materials up to 6 mm in thickness, including polyethyelene, polypropylene, polyurethane and more. Seal length is 305 mm (12"). An adjustable timer knob allows you to set the timing of the heating element according to the type of plastic you are sealing. All sealers are pretested and provide a warranty that guarantees dependability and durability. The impulse sealers are highly energy-efficient; the heating element only heats up and uses power when sealing. Comes fully assembled. UL and CE listed.
